ADA handicap parking painting is not optional for any lot that serves the public. Non-compliant accessible spaces can trigger fines starting at $75,000 for a first offense. Whether you are painting fresh or repainting faded spaces, this guide gives you the exact dimensions, color specs, and a step-by-step process to get it right the first time.
If your lot serves the public in any capacity, a business, church, school, HOA, or shopping centre, you are legally required to have properly marked ADA-compliant accessible parking spaces. The good news is that with the right measurements, the right blue paint, and a quality stencil, you can do this yourself and stay fully compliant.
The Americans with Disabilities Act sets minimum standards for any parking facility open to the public. Every accessible space must include the following elements to be considered compliant:
Getting these numbers wrong voids compliance entirely. These measurements come directly from ADA Standards for Accessible Design. See our standard parking lot line width guide for the full stall dimensions that apply across the rest of your lot.
| Total Lot Spaces | Minimum Accessible Spaces Required |
|---|---|
| 1 to 25 | 1 |
| 26 to 50 | 2 |
| 51 to 75 | 3 |
| 76 to 100 | 4 |
| 101 to 150 | 5 |
| 151 to 200 | 6 |
ADA does not specify an exact paint code in its written standards, but federal and state enforcement agencies consistently accept Federal Standard 595 Color 15090 the same APWA blue used in standard traffic marking paint for accessible parking across the US. The color must contrast sharply against the pavement surface to be enforceable.
Each accessible stall and its access aisle must contain the following painted elements. Missing even one of these is grounds for a violation.
The ISA symbol must be visible from inside a parked vehicle and is typically painted at least 36 inches tall.

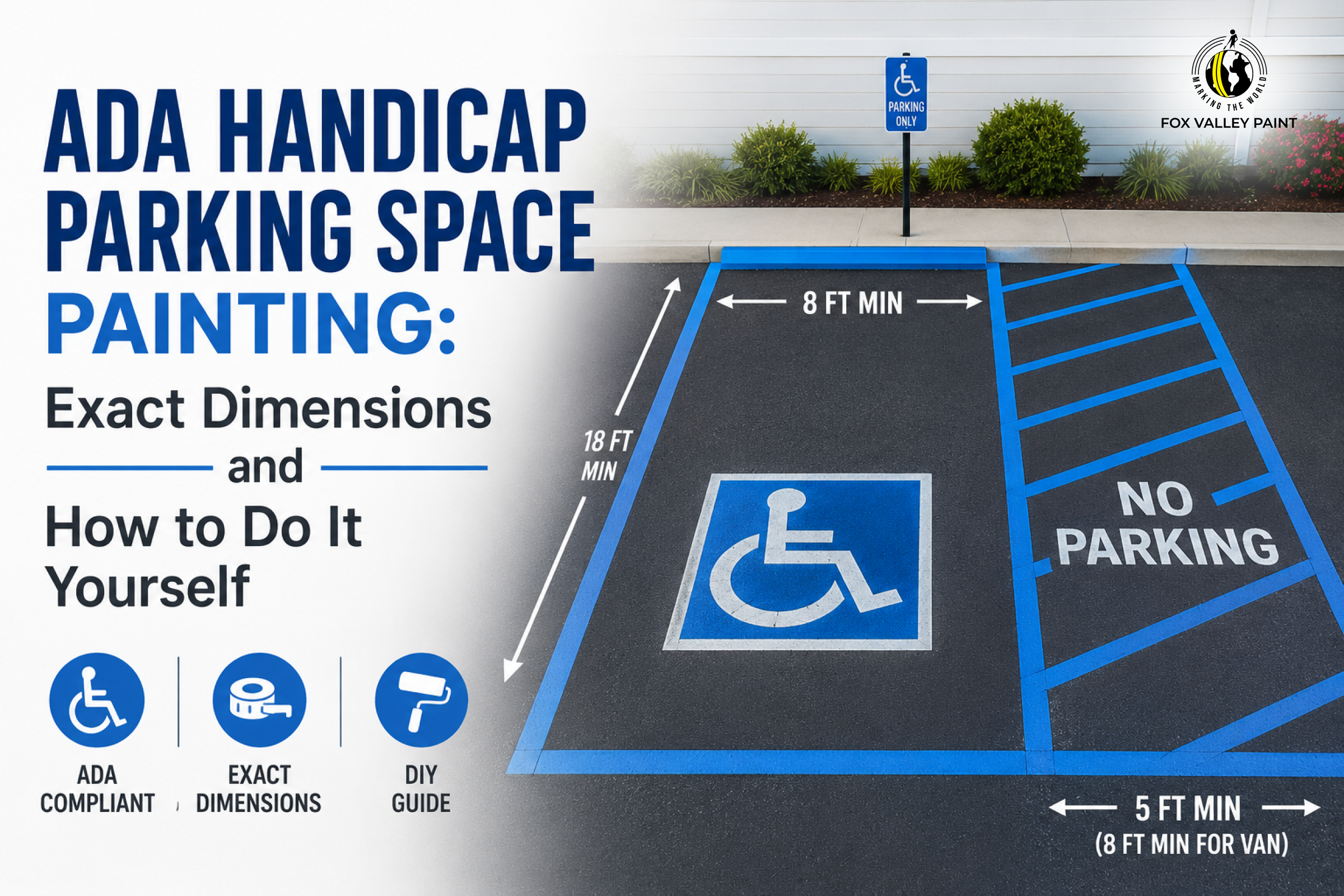

Snap chalk lines to mark the stall width (8 ft minimum) and access aisle (5 ft standard, 8 ft for van). Mark the full 18-foot length from front to back. Measure twice before paint touches anything.
Sweep free of debris, dirt, and loose material. For repaints, pressure wash and allow the surface to dry completely. Paint applied to wet or dirty asphalt bonds poorly and peels within weeks. Learn more about proper parking lot surface prep before striping.
Using an APWA-blue aerosol striping paint, paint all stall and aisle borders along your chalk lines. Maintain a consistent 4-inch line width. Keep a steady, even walking pace if using a line striping machine.
Use a letter stencil to paint "NO PARKING" in the center of the access aisle. Letters must be clearly legible from a standing position outside the vehicle.
Position a heavy-duty handicap stencil centered in the stall. Hold it flat against the surface and apply blue paint evenly through the openings. A consistent spray distance of 12 to 15 inches prevents bleed under the edges. Allow full drying before lifting the stencil.
Walk the full space and confirm: stall dimensions are correct, ISA symbol is centered, "NO PARKING" is visible in the aisle, and all lines are straight and fully covered. Check that your access aisle connects to an accessible pedestrian route.
Fox Valley’s APWA-blue traffic striping paint delivers the exact color compliance officers recognize in a fast-drying aerosol formula built for clean application on asphalt and concrete.
If you are repainting over old markings, verify your existing dimensions meet current standards. ADA requirements have tightened over the years and older lots are often out of compliance without the owner realizing it. For a full overview of why blue ADA markings matter and what compliance looks like, see our full guide.
Our parking lot starter kit includes professional-grade traffic paint and a precision striping machine to handle your entire lot including ADA-compliant accessible spaces. No contractor needed.
Standard accessible spaces must be at least 8 feet wide with a 5-foot access aisle. Van accessible spaces require an 8-foot aisle or an 11-foot-wide stall. See the full parking lot line width guide for complete dimension requirements.
APWA blue (Federal Standard 595 Color 15090) is the accepted standard recognized by most state and federal enforcement agencies across the United States. Fox Valley's traffic striping paint in APWA blue meets this requirement.
Yes. The International Symbol of Accessibility must be painted centered in each accessible stall and must be visible from inside a parked vehicle. A heavy-duty handicap stencil gives you a clean, compliant symbol every time.
Yes. ADA requires "NO PARKING" to be clearly marked inside the access aisle to prevent other vehicles from blocking the accessible route and rendering the space non-functional.
Yes. With accurate measurements, quality APWA blue striping paint, and a proper stencil, one compliant accessible space can be painted in under an hour. Our DIY parking lot starter kit includes everything you need.
